1290 SUPER DUKE GT
The 1290 SUPER DUKE GT packs a powerful punch for fully loaded tours, has massive torque from the bottom up and lacks the need for extensive gear shifts. It's equally happy cruising around town as it is giving superbikes a run for their money when the chips are down. The engineers took the cylinders from the 1290 SUPER DUKE R and adapted them to a specially developed cylinder head and crankshaft to give the 1290 SUPER DUKE GT a powerplant that perfectly fits its sovereign appearance. Or would you interpret 173 hp and 144 Nm of torque, of which 114 Nm is already available at 3.250 rpm, as anything less than royal?

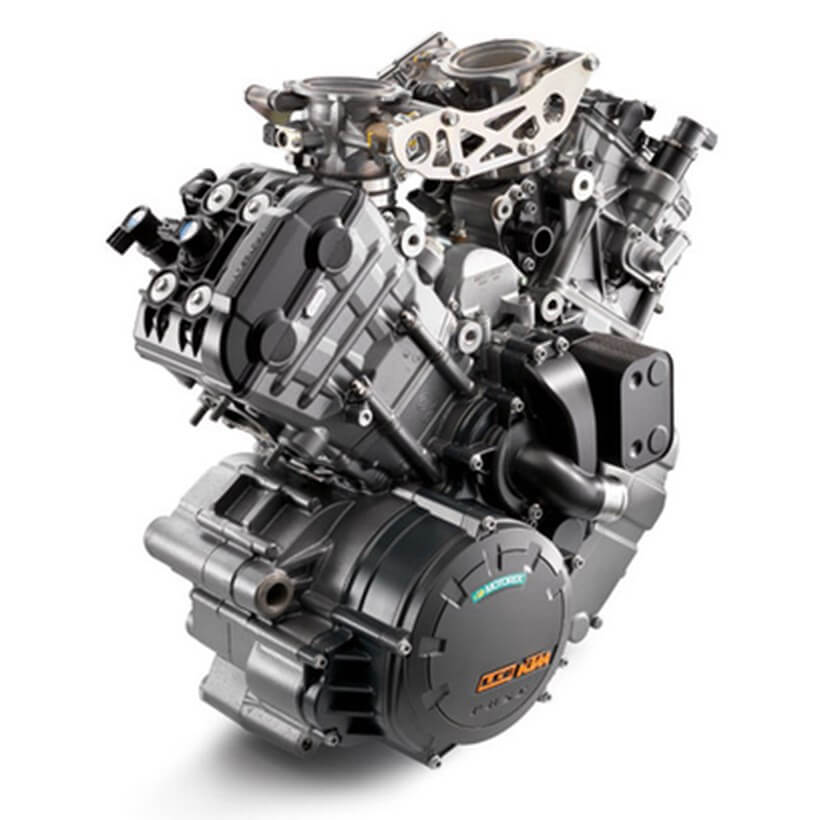

An absolutely key element in the outstanding performance and smooth response of the 1,301 cc 75°V-twin are the unit's cutting-edge four-valve cylinder heads. These combine twin- plug ignition, flow-optimised ports and a slick, low-friction valve train with cams from each cylinders twin-overhead camshafts driving DLC-coated cam followers.
The KTM 1290 SUPER DUKE GT supplies its rider with all necessary and desirable information on a state-of-the-art, clearly arranged instrument cluster from automotive manufacturer VDO. Core data is displayed on a central gauge that consists of an analogue rev counter with integrated, adjustable gearshift light and an LCD display. This display is dominated by a digital speedometer and supplemented with a digital clock, a gear indicator, bar graphs for coolant temperature and fuel level plus the display for the selected riding mode. A second LCD display is positioned to the left of the central instrument, which serves the purpose of conveying important additional information and displaying numerous menu pages as a screen for the on-board computer. Everything is tidy, clean, clear, intuitive and simple to operate-even on the go.
The on-board computer's menu pages are selected and operated using the four control keys of the mode switch on the left handlebar grip. It's very simple and intuitive: "up" and "down" scroll through the menu, the left button selects the desired item, the right confirms it. The Exit key on the left of the mode switch can be pressed at any time to return to the previous menu level. Child's play, basically.
The forged piston structure on the KTM 1290 SUPER DUKE GT, borrowed from Formula 1 technology, results in a high loading capacity, despite the extremely short and lightweight design. Although they have grown in diameter by three millimeters compared with those of the 1190 RC8 R, the pistons on the SUPER DUKE GT are a whole 47 grams lighter. In this way, reciprocating weight is minimized, thereby maximizing the responsiveness and frivolous nature of the engine. Furthermore, the piston skirts have a state-of-the-art, hard-anodized finish. Not only does this reduce friction, it is also particularly hard-wearing with consequently a positive impact on durability.
You can adjust the handlebar over 22 mm and four positions.
WHEELS & SUSPENSION (SUSPENSION COMPONENTS)
The innovative WP semi-active suspension system introduces a new level of comfort and safety in motorcycle riding. The rider can select three spectrums of use: 'Comfort', 'Street' and 'Sport', while the SCU (Suspension Control Unit) adapts the damping rates in real-time to the riding surface and rider, based on the information provided by a set of stroke sensors and accelerometers. It also reads the vehicle load, making the suspension suited to different weights.
FRAMEWORK (SINGLE-SIDED SWINGARM)
The jaw-droppingly beautiful, light alloy, single-sided swingarm on the KTM 1290 SUPER DUKE GT is not only the lightest in its class, but also meticulously manufactured and generously dimensioned - a reassuring partner when the Super Duke GT unleashes its full potential. The rear wheel is fitted to an axle that is 50 mm in diameter and bolted in place with a 60 mm central wheel nut. A high-precision, eccentric adjuster is used for tensioning the chain.
The EFI mapping, in combination with the plain bearing and timing, transfer the power with low vibration and reduced engine noise. This substantially increases the smoothness of the 1290 SUPER DUKE GT power train, so you don't have to fear for your fillings ever again.
The KTM 1290 SUPER DUKE GT's exhaust system is made entirely from rustproof stainless steel and is Euro IV homologated. Hundreds of test bench runs and complex simulations ensured that the exhaust system, which is using an exhaust flap, contributes decisively to the extremely smooth torque curve and excellent emission values of the powerful twin-cylinder. And did we mention the sound? While it whispers at low revs, it will take your breath away reaching for the high notes.
Not only does the slipper clutch open when the engine back-torque becomes too high, it also assists when you open up the throttle. The former prevents destabilizing rear wheel chatter when braking sharply or decelerating; the latter reduces the hand force required for changing gear, allowing the clutch to be controlled with one trigger happy finger.
Instead of the electronic injection system's throttle valves being controlled by cables, ride-by-wire processes throttle twist grip movements with the help of electronic sensors and activates the throttle valves accordingly using servo motors. However, the ride-by-wire system on the KTM 1290 SUPER DUKE GT goes the extra mile: it electronically translates the throttle commands of the rider into optimum throttle valve positions for the current riding situation. Choking, jolting and involuntary wheelies are a thing of the past. Voluntary ones, however, could easily be a thing of your future.
A unique mix of the highest quality components combined with a fully developed and reliable engine allows extremely long service intervals of 15,000 km. That's a lot of adventures.
The Pirelli Angel GT's on the KTM 1290 SUPER DUKE GT offer eager steering, with a broad grip range and fantastic stability. These tubeless sports tires are fitted on alloy rims manufactured in a low-pressure die casting process. Not only do these featherweight wheels make the bike lighter overall, they also minimize the unsprung masses and moment of inertia, with a positive impact on the handling and ride dynamics.
Choose three positions for the brake and shift lever.
With so much propulsive power, the front wheel could become very light, which could quickly lead to unpleasant kick-back on uneven roads or following a slight stimulus at the handlebar. The SUPER DUKE GT prevents this safely with a reliable and sensitive WP steering damper.
The responsiveness and free-revving nature of the KTM 1290 SUPER DUKE GT's engine are also enhanced by the very low reciprocating weight of its crankshaft. Moreover, the flow-optimized shape of the crank webs boosts the particularly low-loss running of the crank drive.
ERGONOMICS & COMFORT
Improved ergonomics such as low foot pegs and a large fuel tank are there to make the rider and passenger feel comfortable. And that's no easy feat. Think about the things to consider: stack and reach, leg arch length, seat height, seat foam, knee angle and knee contact, handlebar width, position and offset, tall riders, short riders, heavy ones and featherweights... But we made it, by tailoring the bike to your needs.
The 23 liter, long range fuel tank, in combination with the low fuel consumption of the 1290 engine, easily provides hundreds of kilometers of exciting riding without caring about a fuel station; an important benefit for touring in desolate regions. The fuel tank also protects the rider's lower body from wind and weather, so you can chill without feeling chilly.
The windshield gives the rider maximum protection from the elements. It can easily be adjusted with only one hand, just by pushing it and adjusting it to fit your needs. Different mountings of the windshield bracket allow an even wider spread of possible positions.
Adjust the hand levers infinitely.
INTEGRATED PANNIER MOUNTING
Panniers offered as KTM PowerParts can be easily fitted to the integrated mounting system of the motorcycle, while keeping the sporty look and unique style of the motorcycle. Remove the panniers in an instant, and instantly be badass.
LED CORNERING LIGHTS WITH INTEGRATED LED INDICATORS
The 1290 SUPER DUKE GT has the segment's first LED cornering lights integrated into its fuel tank. On the left and right side of the fuel tank, the cornering lights consist of three LED segments, using the lean angle sensor of the MSC system. Depending on the lean angle, the KTM cornering light can use up to all three segments, always giving the rider the perfect view to where he is going. Integrated in the cornering lights are the LED indicators, for a unique and exclusive look. Well deserved in a bike like this.
SOFTWARE & ELECTRONICS
Keep the KTM 1290 SUPER DUKE GT under total control while exploiting its full potential. That's what the unique electronics package of this motorcycle allows. Lean-angle sensitive electronics intervene to provide maximum adhesion and optimum acceleration for hunting horizons and chasing superbikes. Combined ABS provides the control for stopping the action instantaneously when needed.
ATIR (AUTOMATIC TURN INDICATOR RESET)
After 10 seconds of movement and 150 meters of riding distance, the turn indicator will stop automatically. If pressed meanwhile, it counts from zero again. A big improvement in terms of safety, as it is now impossible to forget to reset the indicators.
TPMS (TIRE PRESSURE MONITORING SYSTEM)
As its name implies, the TPMS monitors tire pressure (visible in the display) and warns the rider in the event of pressure loss, for example due to tire damage.
MSC (MOTORCYCLE STABILITY CONTROL) WITH C-ABS
The ultimate in safe deceleration. One component of the comprehensive Bosch MSC assistance package is the world's first lean-angle sensitive cornering ABS. Based on the high-quality 9ME modulator, it unites the talents of combined braking and lightning-quick, efficient pressure modulation with the high quality Brembo hardware to make the most advanced braking system on the market - no-one brakes more progressively or safely, even at extreme lean angles. Plus: the brakes are combined. When the front brake lever is actuated, the rear brake is always applied purposefully in order to optimise ride stability when braking. If required, not only can it be switched off, but also placed in supermoto mode.
LED CORNERING LIGHTS WITH INTEGRATED LED INDICATORS
The 1290 SUPER DUKE GT has LED cornering lights integrated into its fuel tank. On the left and right side of the fuel tank, the cornering lights consist of three LED segments, using the lean angle sensor of the MSC system. Depending on the lean angle, the KTM cornering light can use up to all three segments, always giving the rider the perfect view to where he is going. Integrated in the cornering lights are the LED indicators, for a unique and exclusive look. Well deserved in a bike like this.
MTC (MOTORCYCLE TRACTION CONTROL)
The MTC (Motorcycle Traction Control) lean-angle sensitive traction control system reacts immediately if the rotational speed of the rear wheel is disproportionate to the riding situation. In a matter of milliseconds, MTC reduces the engine output with an extremely smooth, barely perceptible intervention at the throttle valves, until the system has reduced slippage to optimum proportions for the selected ride mode and current angle of lean. Depending on the selected riding mode, MTC traction control allows different levels of traction slip at the rear wheel. In "Street" mode somewhat more than in "Rain" mode, while slight power slides are allowed when exiting curves in "Sport" mode. All this means that the rider can concentrate on the run of the road and other road users - the guarantee for maximum performance and ultimate riding pleasure, but also a decisive contribution to active safety. For particularly ambitious riders, who feel like enjoying the breathtaking propulsion of the KTM 1290 SUPER DUKE GT without any electronic assistance, the traction control can also be switched off.
The 1290 SUPER DUKE GT comes fitted with heated grips. Cosy.
The fun-loving supermoto mode allows the rider to block the rear wheel as and when required - a prerequisite for committed supermoto riding and deliberately executed slides. The ABS function remains active on the front wheel, even in this mode.
The GT is equipped with a race-derived quickshifter. It allows upshifts to be made under any load without using the clutch, which gains precious time that would otherwise be wasted in closing the throttle. And that would be a pitty.
Equipped as standard with cruise control, long motorway journeys become a piece of cake. Switches on the throttle grip and a display in the VDO cockpit unit allow the rider to intuitively set and change the requested speed, so you'll arrive at the twisties with energy to spare.
ACCESSORIES & LUGGAGE
Take the 1290 SUPER DUKE GT on the road for days and modify it to suit your personal style with the KTM PowerParts range of accessories and luggage options. Developed specifically for individual KTM models, all KTM PowerParts perfectly complement the rider and provide that important 'factory fit' straight from the dealer.
NAVIGATION- NUVIZ MOTORCYCLE HEAD-UP DISPLAY
NUVIZ is the first fully-integrated head-up display (HUD) designed specifically for the needs of motorcycle riders. It displays customizable information in the rider's natural line of sight and features an intuitive eyes-on-the-road handlebar controller and built-in HD action camera. NUVIZ is intended to be used in all conditions, including riding in the rain.NUVIZ brings together all of the important functions of your navigation, communication, and media devices into a single device, allowing riders to stay connected, but not distracted. NUVIZ includes an HD camera that shoots stills and video, and can be updated as new features become available in the future.In order to take the NUVIZ device into use, you need either an Android device with Android OS 4.4.2/KitKat (or newer) or iPhone/iPad with iOS 10.2 (or newer). More information on supported products can be found at HTTP://WWW.RIDENUVIZ.COM/SUPPORT.
Chromium-Molybdenum steel trellis frame, powder coated
WP Semi-active suspension USD Ø 48 mm
WP Semi-active suspension monoshock
Suspension travel (front)
Suspension travel (rear)
Front brake disc diameter
2 x Brembo monoblock four-piston radial fixed calliper, brake discs, floating
Brembo twin-piston fixed calliper, brake disc
Front brake disc diameter
Rear brake disc diameter
Bosch 9ME Combined ABS (incl. cornering ABS and supermoto mode, disengageable)
X-Ring 5/8 x 5/16"
Steering head angle
1482 ± 15 mm
Tank capacity (approx.)
2-cylinder, 4-stroke, V 75°
Power in KW
Forced oil lubrication with 3 oil pumps
Secondary gear ratio
PASC (TM) slipper clutch, hydraulically actuated
Keihin EMS with RBW, twin ignition
