300 EXC TPI SIX DAYS 2021
300 EXC TPI SIX DAYS 2021 for Sale at KTM Epping in Epping, VIC | Specifications and Review Information
THE PINNACLE OF ENDURO
No other brand stands up to the success of KTM when it comes to enduro, and this is clearly evident in the biggest competition on the calendar, the 'International Six Days Enduro' (ISDE). From its humble beginnings, the ISDE has turned into the team world championship of the Enduro scene. This Enduro marathon demands as much from the bikes as it does from the riders, and every year, more than half of them show up on Orange. The 2021 KTM SIX DAYS models pay the ultimate tribute to the event that was originally set to take place in Italy in 2020 and had to be rescheduled for 2021. No chain is stronger than its weakest link, so no compromise can be made for those intent on crossing the finish line. KTM, once again, rises to the challenge with the latest, limited Six Days edition of extra-tough machines. Easily identified by their special Six Days design, these bikes feature an extended list of top-of-the-line components, all specially designed and refined by KTM's own research and development department. These are the ultimate Enduro bikes for the exceptional event.

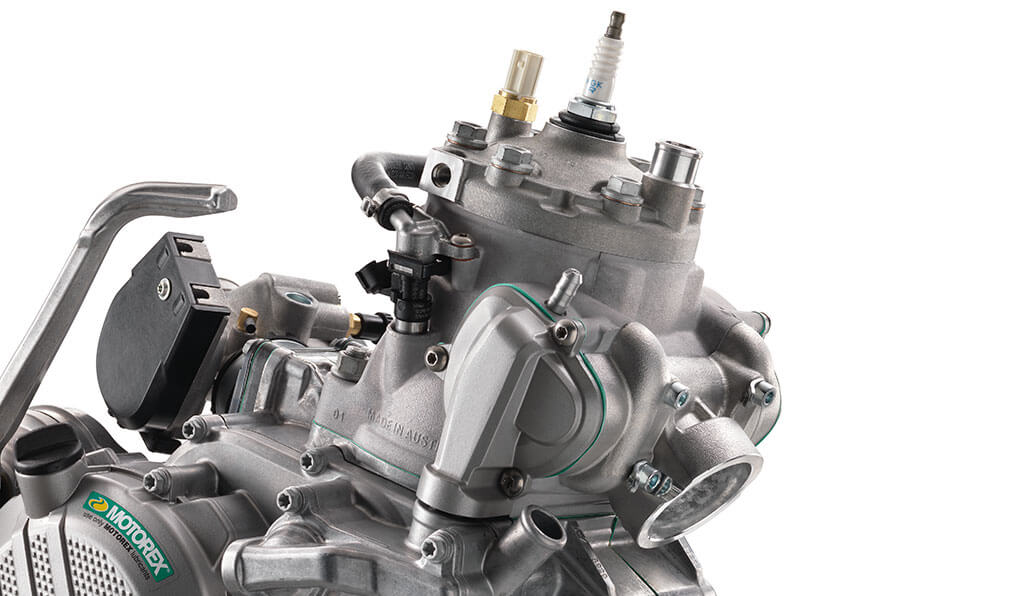

The cylinder ON THE KTM 300 EXC TPI SIX DAYS has a bore of 78 mm and is fitted with a sophisticated power valve, which provides really smooth and controllable power characteristics. For the EFI application, the cylinder features two lateral domes which hold the fuel injectors that supply fuel to the rear transfer ports. The downstream injection guarantees excellent atomisation of the fuel with the upstreaming air. Thus, the loss of unburnt fuel is minimal for less emissions, a more efficient combustion and reduced fuel consumption. A little tube in the back of the cylinder is connected with an intake pressure sensor, which supplies pressure data to the control unit. As of the 2020 model, the cylinders feature an improved power valve unit with a sophisticated mechanism for the lateral support exhaust ports. The new exhaust port layout increases engine performance, while the upper contour of the exhaust port has been machined to ensure more accurate port timing. Last but not least the new models allow the use of a more widely available type of traditional spark plug.
CRANKCASES AND ENGINE COVERS
The compact engine cases are manufactured using a high pressure die-cast production process which helps with weight reduction, while retaining strength and durability. The design allows for optimal shaft arrangements close to the centre of gravity, resulting in ideal mass centralisation and easier ride-ability. Plus, the engine covers feature a smart surface structure which reduces wear caused by the rider's boots, keeping them looking as fresh as the day you bought your EXC.
The KTM 300 EXC TPI is now fitted with a new, more robust 6-speed transmission made by PANKL RACING SYSTEMS. The gear ratios were carried over from the predecessor, but is now made of a stronger, forged raw material, ensuring the highest durability and reliability level. Another highlight of the 300 EXC TPI ERZBERGRODEO transmission is the no-dirt gear shifter. Similar to the footpeg design, it prevents the build-up of dirt and ensures the next gear is always available, no matter what the conditions.
Maintaining the optimal engine temperature is crucial to ensuring consistent horsepower throughout the ride. The KTM 300 EXC TPI SIX DAYS features newly designed radiators which are mounted 12 mm lower than the predecessors. This lowers the centre of gravity and matches the design of the new shrouds perfectly, in order to achieve perfect ergonomics. By using CFD technology (computational fluid dynamics) together with a clever coolant circuit routing, the innovative system ensures the optimum engine temperature for the highest performance, no matter what the conditions. Above all, a reworked delta distributor, integrated into the frame triangle, features a 4 mm larger centre tube, increasing the cross-section by 57%, making the coolant flow from the cylinder head to the radiators more efficient. The radiators also feature special protectors that don't only serve as protection from flying rocks and debris but also as a brace that disperses energy around the radiators in the event of an impact.
If you're going to ride for six days, you may as well have the special SIX DAYS SEAT. All the foam technology seen on the other EXC models, but with a unique SIX DAYS cover featuring additional stripes for better grip and comfort.
The KTM 300 EXC SIX DAYS features a new orange, high-tech, lightweight chromoly steel frame. This includes hydro-formed elements produced by state-of-the-art robot welding. They retain their race-proven geometries, but by re-designing certain areas, the stiffness has been optimised, resulting in better feedback for the rider, playful handling and improved stability. The laterally attached engine head stays (the connection between cylinder, head and frame) are now made of aluminium, reducing vibration and further contributing to precise cornering. The bikes also feature newly designed lateral frame guards with a structured surface, improving grip, while also serving as a heat protector against the muffler on the right side. In the 250 and 300, the engine is lowered by 1ÃƒÆ’Ã¢â‚¬Å¡Ãƒâ€šÃ‚Â° around the swingarm pivot improving front wheel traction significantly. The subframe is made of extra-light and stable aluminium profiles, weighing less than 900 g and is 40 mm longer than before, providing better rear fender stability.
KTM uses lightweight, CNC-machined hubs and high-end GIANT black anodised rims on all Enduro models, guaranteeing maximum stability and minimum weight. For 2020, the aluminium spoke nipples feature a reworked design, which conveniently reduces the frequency with which the spokes need to be tightened. A SIX DAYS logo features on the rims and Metzeler EXTREME is the tire of choice for this high-end enduro weapon.
All EXC SIX DAYS models are fitted with the latest 48 mm diameter WP XPLOR upside-down forks with preload adjusters, featuring a split fork design developed by WP and KTM. While each side is fitted with springs, they have separate damping functions. Compression damping is on the left and the rebound on the right. Both can easily be adjusted via the dials on top of both fork tubes with 30 clicks each. Although already distinguished for outstanding response and damping characteristics, the 2020 fork features a calibrated mid-valve piston for more constant damping. It also has new upper fork caps and clicker adjusters for easier adjustment with a new colour and graphic design. The new settings keep the front end higher, providing increased reserves against bottoming out.
The WP XPLOR shock absorber is the key element on the proven PDS rear suspension design (progressive damping system), where the shock is directly linked to the swingarm without an additional linkage system. This keeps weight lower and reduces the chances of hooking on rocks. Optimal enduro-specific damping progression is achieved by using a second damping piston in combination with a closed cup towards the end of the stroke, and supported by a progressive shock spring. For 2020, improvements to the second piston, as well as a reworked shape and sealing of the cup, lead to improved resistance against bottoming without any sacrifice of comfort. New settings on the XPLOR PDS shock provide better damping characteristics and match the new frame and reworked front-end set-up perfectly. It is fully adjustable, including high and low-speed compression, so you can set the shock up to suit any track, trail and rider preferences.
These high-tech Brembo brakes are combined with lightweight Wave brake discs (Solid rear and floating front). You couldn't brake any harder or with better feel on an offroad motorcycle. For additional strength and reliability, the rear brake pedal is secured with a safety wire.
All models in the EXC range are fitted with newly designed lightweight polyethylene tanks improving the ergonomics. The ¼â€turn bayonet filler cap makes for quick and easy closure. Manufactured using seeâ€through plastic, you will always be able to see how much fuel remains at a glance. It is fitted with an integrated fuel pump system and a fuel level sensor. Additionally, the fuel line features a 90° connector to the tank for better protection against damage.
The new airbox on the KTM 300 EXC TPI SIX DAYS has been completely reworked to ensure better flow dynamics, and together with new intake snorkels, results in optimal power and throttle response. Despite the obvious performance enhancements, the new design also offers maximum protection against soiling of the air filter. The large twin-air air filter is mounted on a cleverly designed stiff cage that minimises incorrect installation. As found on previous models, filter maintenance is quick and easy and does not require tools - a standard, original feature from KTM.
All SIX DAYS models are equipped with the same high-strength aluminium tapered handlebar, that can be mounted in four different positions. The handlebars come standard with an ODI vulcanised grip on the right side and a comfortable ODI lock-on grip, which does not require any wire or glue, on the left. Just in case you needed reminding that you were on a special machine, the handlebars feature the SIX DAYS logo.
Sophisticated 'No-Dirt' footpegs prevent clogging up the pegs, even when digging in deep ruts. The pegs on the Enduro models are 6mm higher than the ones used on SX models, which benefits ground clearance. But you can swap them at will.
ENGINE MANAGEMENT SYSTEM
The engine management system (EMS) of the TPI models features a control unit located below the seat. The ECU defines the ignition timing and amount of fuel to inject is based on several sensor readings such as intake air pressure, throttle position and water temperature plus a new additional ambient air pressure sensor. Thanks to altitude and temperature compensation the rider does not need to worry about fiddling around with the jetting anymore. Should the rider decide to mount a radiator fan from the KTM PowerParts program, it will be controlled directly by the EMS without needing to add an additional thermal switch. An optional map select switch can be purchased, which allows the rider to select an alternate map while on the fly, for the optimal power delivery no matter the conditions.
Say goodbye to numb feet and hands. This engine design allows the implementation of a lateral balancer shaft in order to keep the vibrations to a minimum. You know what that means: more comfort, less fatigue, bigger smiles.
The KTM 300 EXC TPI SIX DAYS employs the KTM-developed DDS clutch (damped diaphragm steel) with a wear-free steel basket, extremely heat resistant clutch plates and nitrated steel liners. This clever design employs a diaphragm spring instead of the usual coil springs, making for considerably easier clutch action. A diaphragm spring also leaves sufficient space for a damping system to be integrated into the clutch hub. The goal is traction, but without compromising durability. Light operation and a 'telepathic' level of control come standard with this hydraulic Brembo actuated clutch.
Pre-mixing 2-stroke fuel is a thing of the past for KTM EXC TPI owners. The 2020 models are fitted with a newly designed 2-stroke oil tank featuring reworked and more flexible mountings, which greatly improve durability and reliability. In addition, a mesh filter helps prevent dirt getting into the oil pump. Mounted below the oil tank, the oil pump delivers the lubricant directly to the throttle body, where it is mixed with the incoming air to lubricate the piston and crankshaft. Using engine speed and throttle position sensor data, the engine management's precise electronic control of the oil pump ensures that the ideal amount of oil for any given conditions is used. The filler cap assembly for the oil tank is located between the fuel tank and steering head, utilising a hose in the upper frame tube to transfer the oil to the storage container. With an average fuel-to-oil ratio of 1:80, the oil capacity of about 0.7 litres is sufficient for at least five tanks of fuel.
The TPI engine is fitted with a redesigned 39mm throttle body made by Dell' Orto. The airflow is regulated by a butterfly connected with a twin-cable throttle cam, which is operated by the handlebar throttle assembly. A throttle position sensor provides airflow data to the control unit. For MY20 the idle system was reworked allowing the idle speed to be set more precisely via the bypass screw. Also, the cold start system is improved for a better supply of extra air when opening a bypass. Oil supplied by the electronically controlled oil pump via an oil intake tube is mixed with the incoming air to lubricate the moving engine parts.
The 300 cc 2-stroke engine has plenty of power and torque, but remains light enough for riders to muscle their way through the toughest obstacles. Thanks to state-of-the-art engineering, innovative 2-stroke design and revolutionary TPI fuel injection technology, the 2020 powerplant is even more refined than ever before. The compact and lightweight 2-stroke is a great choice for offroad riders who want usable enduro performance that is ready to conquer in the most extreme terrain. With Euro IV homologation, it's not only considerately green, but leaves the competition green with envy too.
To accommodate the power requirements of the upgraded engine management system, the TPI models are fitted with a powerful 196 W alternator and a voltage regulator. The same as can be found on the EXC-F 4-stroke models.
When it comes to improved power delivery and performance, the new exhaust plays a key role and packs a punch that is hard to beat. The 250 cc and 300 cc models feature new HD exhaust pipes (heavy-duty) made by using an innovative 3D stamping process which produces a ripped surface finish. This makes the pipe much stronger, with better resistance against rocks, while also helping to reduce noise drastically. The silencer features a new shape and end cap with reworked internal designs individually developed for each model. The plastic silencer holder is now replaced with lightweight, welded mounting brackets. In addition, the exhaust's new shape provides slimmer ergonomics and more ground clearance, while a new perforated inner silencer tube works with lighter damping wool for more efficient and more durable noise reduction. This adds up to a weight reduction of approximately 200 grams. The silencer on this model also displays the Sixdays logo for further distinction from the crowd.
The KTM 300 EXC TPI's one-piece aluminium swingarm is manufactured using a gravity die-cast production process, offering exceptional strength at the lowest possible weight. The single-component casting process offers low weight, perfect flex behaviour and also allows for a large number of geometry solutions.
Wet, DDS multi-disc clutch, Brembo hydraulics
CO2 Emissions (Bike)
2.79 l/100 km
Weight (Without Fuel)
Tank capacity (approx.)
Front brake disc diameter
Rear brake disc diameter
X-Ring 5/8 x 1/4"
25CrMo4 steel central-tube frame
WP XPLOR-USD, Ø 48 mm
WP Xplor PDS shock absorber
Steering head angle
Suspension travel (front)
Suspension travel (rear)
The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost. All information concerning the scope of supply, appearance, services, dimensions and weights is non-binding and specified with the proviso that errors, for instance in printing, setting and/or typing, may occur; such information is subject to change without notice. Please note that model specifications may vary from country to country.The consumption values stated refer to the roadworthy series condition of the vehicles at the time of factory delivery.
