Home / Bikes /Enduro / 300 XC

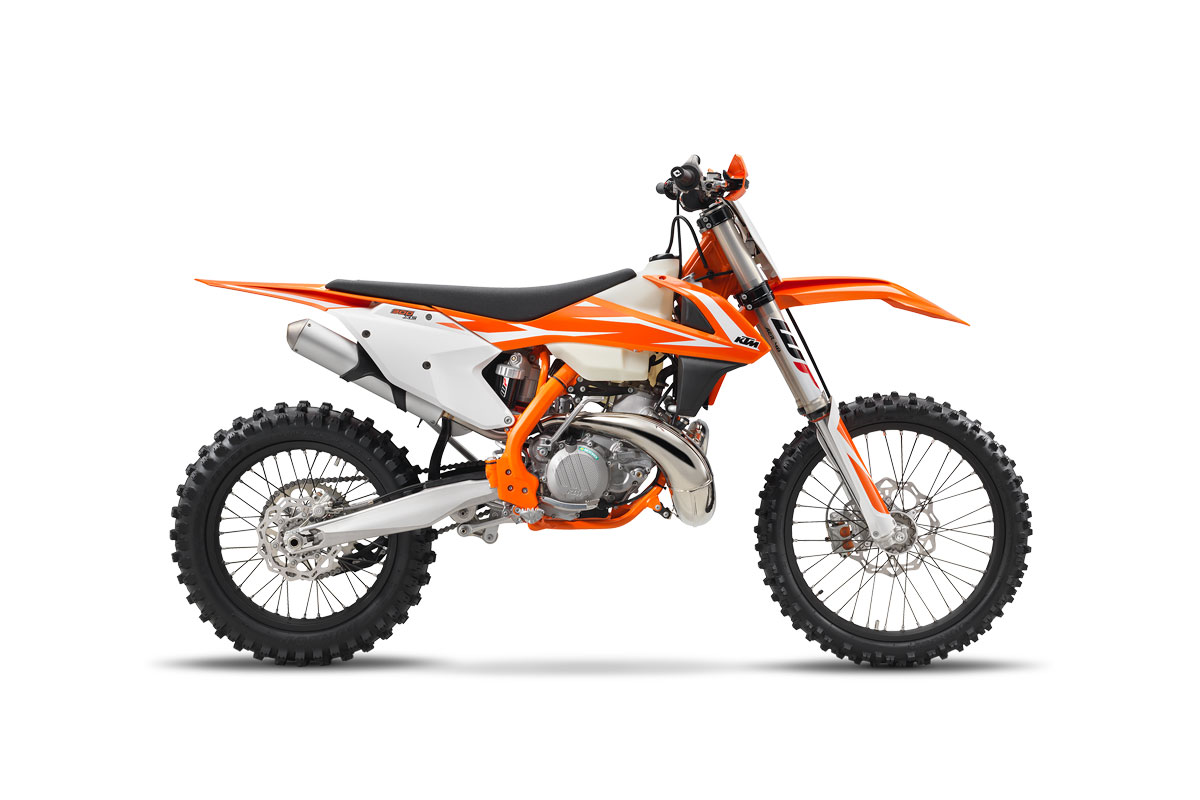

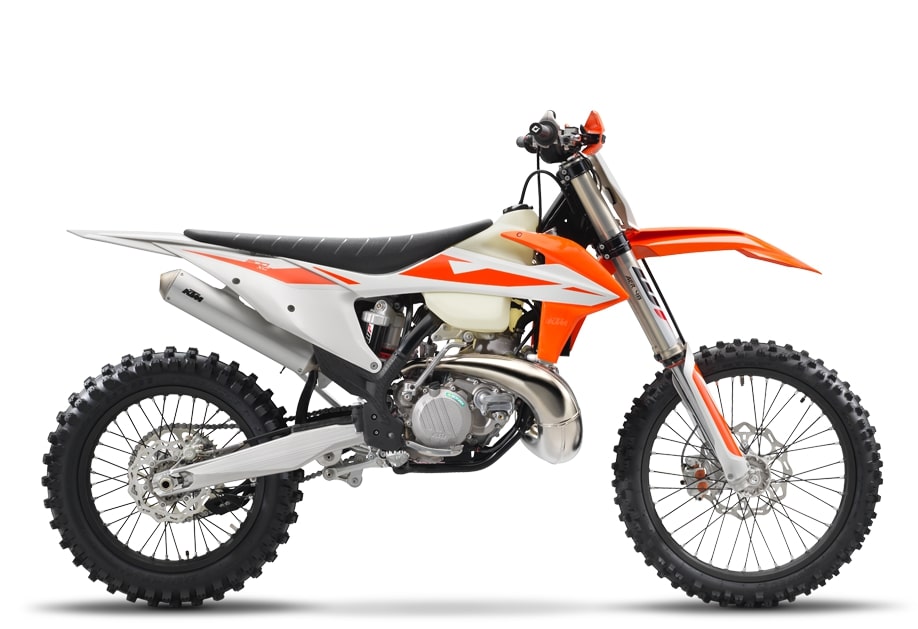

300 XC

ktm-300-xc

UNRIVALED POWER-TO-WEIGHT RATIO

Take the unrelenting ferocity of an SX bike, add a few extra horsepower and torque, a longer-range fuel tank and an 18” rear wheel to accommodate more rubber, and your’e well-armed to dominate the dirt. In a nutshell, the KTM 300 XC is arguably the most accomplished cross-country racer available.

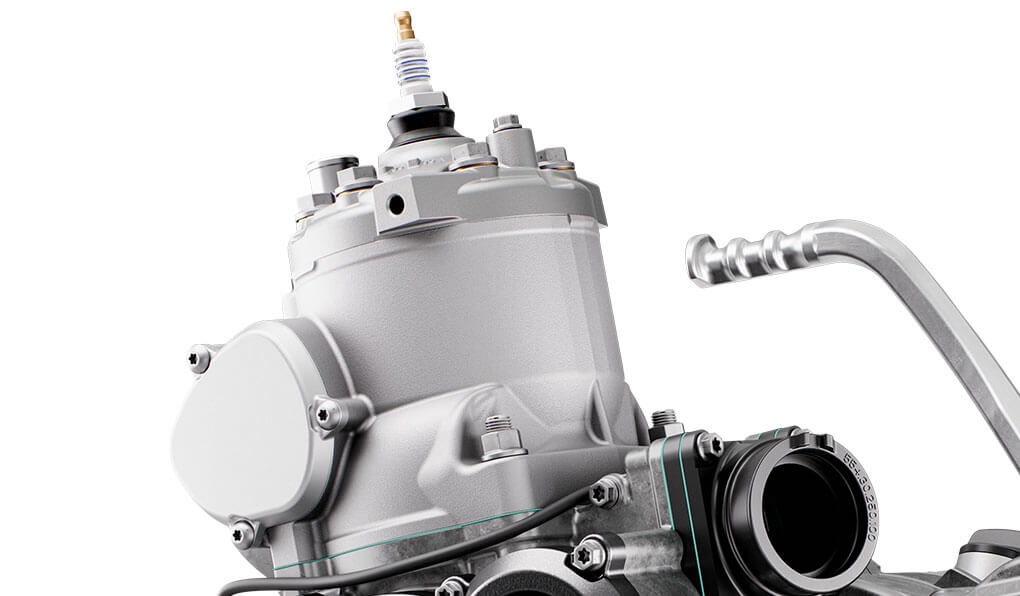

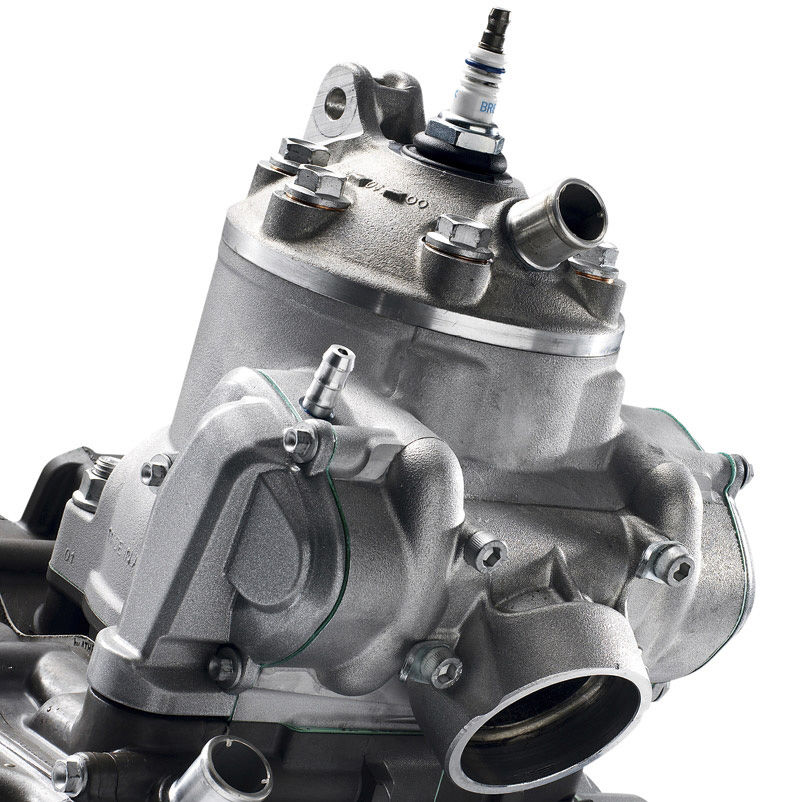

CYLINDER

CYLINDER

This compact cylinder with a 72 mm bore features a cutting-edge power valve unit with a sophisticated mechanism for the lateral support exhaust ports. Matched to a twin-component cylinder head, it is KTM's secret to all-round grunt. The layout of the water jackets in the cylinder and head guarantees efficient heat dissipation when the going gets tough.

CRANKCASES AND ENGINE COVERS

CRANKCASES AND ENGINE COVERS

These die-cast crankcases allow the implementation of a balancer shaft. So your ride will be as relaxed as it is rapid. Plus, your new favorite engine will keep looking as fresh as the day you bought it: its engine covers feature a smart surface structure in order to reduce the wear caused by the rider's boots.

TRANSMISSION

TRANSMISSION

A robust 6-speed semi-close transmission, its gear ratios perfectly in sync with the 300's power band. An advanced 'No Dirt' gear shift lever design prevents mud and sand from jamming the joint of the lever and guarantees trouble-free shifting.

DECALS

DECALS

A new, tailor-made kit and a Factory orange frame. Because in this sport, champs deserve to look the part regardless of the dirt.

BRAKES

BRAKES

These high-tech Brembo babies are combined with lightweight wave discs. You couldn't brake any harder, better, faster or stronger.

BALANCER SHAFT

BALANCER SHAFT

Say goodbye to numb feet and hands. This engine design allows the implementation of a lateral balancer shaft in order to keep the vibrations to a minimum. You know what that means: more comfort, less fatigue, more racing.

CLUTCH

CLUTCH

The KTM 300 XC employs the KTM-developed DDS clutch (damped diaphragm steel) with a robust steel basket, extremely heat resistant clutch plates and new, nitrated steel liners reducing the wear. This clever design employs a diaphragm spring instead of the usual coil springs, making for considerably easier clutch action. A diaphragm spring also leaves sufficient space for a damping system to be integrated into the clutch hub. The goal is traction, but durability is as well. Light operation and telepathic amounts of control are standard with this hydraulic Brembo actuated clutch.

CARBURETOR

CARBURETOR

The KTM 300 XC is fitted with a MIKUNI TMX carburetor. This 38mm flat slide carb lives to provide smooth and controllable power all the way up to the rev limitation. With a new intake manifold the carburetor is turned 7° in order to reduce the overflow of fuel. And it's less sensitive to different altitudes and temperatures, so you can pin it wherever, whenever.

IGNITION

IGNITION

All 2-stroke models feature a new CDI control unit with an advanced hardware which improves the starting behavior of the engine. The ignition curves remain unchanged.

COOLING

COOLING

KTM's proven cooling system routes the coolant from the cylinder head through the frame triangle, directly to aluminum radiators made by WP. Thanks to flow optimized internal circulation and CFD-calculated ventilation, the system is superbly efficient. In addition, new radiator protections improve heat dissipation. Especially in the mud. They are also integrated into the front part of the shrouds to protect the radiators in a crash.

EXHAUST

EXHAUST

The engineers meticulously tuned the resonator chamber for maximum torque and power, so this screamer is as tough as it is strong.

FRAME

FRAME

The high-tech, lightweight chrome-moly steel frame has a knack for easy handling, outlandish rideability, precise cornering and excellent stability. You can also count on high torsional rigidity and low longitudinal stiffness. This results in better absorption of the energy created from the front and rear suspension, sucking up jumps and bumps. In short: more comfort and less rider fatigue. Laterally attached, lightweight aluminum engine head stays (the connection between cylinder head and frame) contribute to precise cornering and a reduced vibration level. The engineers were able to pull off all that, while making their frame 2.2 pounds lighter than that of the lightest competitor on the market. In addition, it is easier to maintain, easier to work on and supplies more space for the tank and other components. The bike also features an extra-light subframe made of aluminum, which tiptoes the scales at less than 2 pounds.

SWINGARM

SWINGARM

The cast aluminum design offers low weight and a perfect flex behavior. The single-component casting process eliminates any inconsistencies and inherent weak points created by welding. It's better looking too.

WHEELS

WHEELS

The 300 XC is fitted with lightweight, CNC-machined hubs, high-end Giant rims and black spokes with lightweight aluminum nipples providing maximum stability at minimum weight. The latest Dunlop Geomax AT81 tires guarantee perfect traction and outstanding performance.

FRONT SUSPENSION

FRONT SUSPENSION

The lightweight WP AER 48 front fork, a 48mm USD air-sprung fork developed by WP in close collaboration with KTM, is a split fork with separate functions for each leg. That means damping functions are on the right side, whereas the air spring is in the left. This left leg features a 2-chamber system with a capsuled air cartridge to prevent loss of air pressure. Should the outer seal start to leak, the internal cartridge pressure will keep the bike in position. The air spring is easy to adjust to any rider weight via a single air valve. No special tools are required; the fork air pump is supplied with the bike. The right fork leg integrates a damping cartridge that tailors to all your damping needs. It can be adjusted to the track conditions and the rider's preferences with a twist of a dial (compression from the top, rebound from the bottom, 30 clicks each). Right off the dealer floor, this fork (with reworked damping characteristics) is more comfortable and more sensitive than ever. But you can still hammer the hell out of it.

REAR SUSPENSION

REAR SUSPENSION

The WP shock absorber has been developed with the entire frame and swingarm architecture in mind, including the linkage and the WP AER 48 front fork. It features machined and black anodized components and is a valuable, high-end product compared to roughcast reservoirs. A new, confidence inspiring setting with improved damping characteristics perfectly matches the front-end setup and its WP color scheme lets everyone know you have excellent taste in suspension.

TRIPLE CLAMP

TRIPLE CLAMP

Top quality, CNC machined triple clamps have been a KTM trademark for years to ensure precise handling. The rubber damped handlebar fixation allows for two positions and an hourmeter is fitted in order to let the rider know it's time for a service.

FUEL TANK

FUEL TANK

All XC 2-stroke models have new lightweight polyethylene tanks fitted with an integrated fuel pump system and capacity of 2.6 gallons. Inside threads on the filler cap make for an easy and reliable closure.

AIRBOX

AIRBOX

The air filter box design offers maximum protection of the air filter against soiling, while ensuring maximum airflow. The large Twin Air filter is mounted in a stiff cage, which at the same time holds the system in place. This design is so simple, you could still pop a fresh one in with a face full of mud. Without tools. In seconds.

HANDLEBAR

HANDLEBAR

KTM engineers sure know how to handle handlebars. This tapered one, made of high-strength aluminum, is fixed in damped rubber mounts and has two different positions. ODI lock-on grips make grip changes easy and do not require any wire or glue to be secured.

FOOTPEGS

FOOTPEGS

Sophisticated 'No Dirt' footpegs prevent smudging up the pegs, even when digging in deep ruts. Looking for a higher riding position? Then just mount the footpegs of the 2018 EXC models, which are 6mm higher than the SX versions.

  • Design

    1-cylinder, 2-stroke engine

  • Displacement

    293.2 cm³

  • Bore

    72 mm

  • Stroke

    72 mm

  • Starter

    Electric starter

  • Transmission

    6-speed

  • Clutch

    Wet, DDS multi-disc clutch, Brembo hydraulics

  • EMS

    Kokusan

  • Frame Design

    25CrMo4 steel central-tube frame

  • Front Suspension

    WP-USD, AER 48, Ø 48 mm

  • Rear Suspension

    WP shock absorber with linkage

  • Suspension Travel (Front)

    310 mm

  • Suspension Travel (Rear)

    300 mm

  • Front Brake

    Disc Brake

  • Rear Brake

    Disc Brake

  • Front Brake Disc Diameter

    260 mm

  • Rear Brake Disc Diameter

    220 mm

  • Chain

    5/8 X 1/4”

  • Steering Head Angle

    63.9 °

  • Ground Clearance

    370 mm

  • Seat Height

    950 mm

  • Tank Capacity(Arrpox.)

    10 l

  • Weight ready to race(without fuel)

    99 kg
