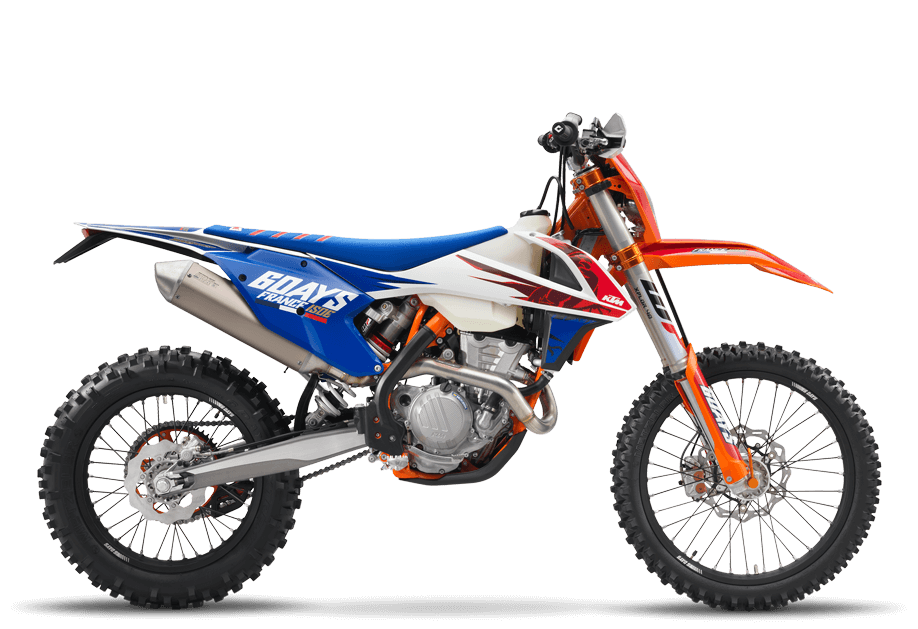

450 EXC-F SIX DAYS 2020
KTM 450 EXC-F SIX DAYS for Sale at KTM Epping in Epping, VIC | Specifications and Review Information
No other brand stands up to the success of KTM when it comes to enduro, and this is clearly evident in the biggest competition on the calendar, the 'International Six Days Enduro' (ISDE). From its humble beginnings, the ISDE has turned into the team world championship of the Enduro scene. This Enduro marathon demands as much from the bikes as it does from the riders, and every year, more than half of them show up on Orange. The 2019 International Six Days Enduro will be held on demanding terrain in Portugal. No chain is stronger than its weakest link, so no compromise can be made for those intent on crossing the finish line. KTM, once again rises to the challenge with the latest, limited Six Days edition of extra-tough machines. Easily identified by their special Six Days design, these bikes feature an extended list of top-of-the-line components, all specially designed and refined by KTM's own research and development department. These are the ultimate Enduro bikes for the exceptional event.
The 450 EXC-F engine is fitted with a newly developed SOHC cylinder head which is much more compact, 15 mm lower and 500 gr lighter improving the mass centralization and contributing to even better handling. The gas flow through the newly shaped ports is controlled by a new overhead camshaft which is now closer to the center of gravity for improved handling. It features a better axial fixation of the de-compressor shaft and a new, more efficient integrated engine breather system. The four new valves are shorter and adapted to the new head design, but retain the same valve timing as the predecessor. The rocker arms have been optimized with a stiffer design, guaranteeing more constant performance throughout the rpm range. A shorter timing chain and new low-friction chain guides contribute to the engine's overall reduced weight and lower friction. The new head configuration promises more efficient power delivery and unrivalled performance.
The KTM 450 EXC-F SIX DAYS' crankshaft is located in an ideal position close to the centre of gravity, contributing to easier handling. It utilizes a short connecting rod, which makes for an overall compact and lightweight engine with a snappy power delivery. A plain big (bottom) end bearing with two force-fitted bearing shells runs directly on the crank pin. The engine's pressurized lubrication system provides the necessary oil feed for this bearing. This design has a direct benefit for the crankshaft with extended service intervals, which are lengthened due to the plain bearing. So just pin it, all day long.
CRANKCASES AND ENGINE COVERS
The EXC models feature reworked engine cases, reducing the weight by nearly 300 g. The design allows for a very centralized shaft configuration, making the engine very short and compact, while contributing to an efficient centralization of mass. Additionally, the engine covers feature a smart surface structure which reduces wear caused by the rider's boots, keeping them looking as fresh as the day you bought it, while a new reinforced clutch cover and engine guard means the engine is more robust, even in rocky terrain.
The KTM 450 EXC-F SIX DAYS' one-piece aluminum swingarm is manufactured using a gravity die-cast production process, offering exceptional strength at the lowest possible weight. The single-component casting process offers low weight, perfect flex behavior and also allows for a large number of geometry solutions.
KTM uses lightweight, CNC-machined hubs and high-end GIANT rims on all Enduro models, guaranteeing maximum stability and minimum weight. For 2020, the aluminum spoke nipples feature a reworked design, which conveniently reduces the frequency with which the spokes need to be tightened.
All EXC models are fitted with the latest 48 mm diameter, WP XPLOR upside-down forks, featuring a split fork design developed by WP and KTM. While each side is fitted with springs, they have separate damping functions. Compression damping is on the left and the rebound on the right. Both can easily be adjusted via the dials on top of both fork tubes with 30 clicks each. Although already distinguished for outstanding response and damping characteristics, the 2020 fork features a calibrated mid-valve piston for more constant damping. It also has new upper fork caps and clicker adjusters for easier adjustment with a new colour and graphic design. The new settings keep the front end higher, providing increased reserves against bottoming out.
The WP XPLOR shock absorber is the key element on the proven PDS rear suspension design (progressive damping system), where the shock is directly linked to the swingarm without an additional linkage system. This keeps weight lower and reduces the chances of hooking on rocks. Optimal enduro-specific damping progression is achieved by using a second damping piston in combination with a closed cup towards the end of the stroke, and supported by a progressive shock spring. For 2020, improvements to the second piston, as well as a reworked shape and sealing of the cup, lead to improved resistance against bottoming without any sacrifice of comfort. New settings on the XPLOR PDS shock provide better damping characteristics and match the new frame and reworked front-end set-up perfectly. It is fully adjustable, including high and low-speed compression, so you can set the shock up to suit any track, trail and rider preferences.
The new airbox on the KTM 450 EXC-F SIX DAYS has been completely reworked to ensure better flow dynamics, resulting in optimal power and throttle response. Despite the obvious performance enhancements, the new design also offers maximum protection against soiling of the air filter. The large twin-air air filter is mounted on a cleverly designed stiff cage that minimizes incorrect installation. As found on previous models, filter maintenance is quick and easy and does not require tools - a standard, original feature from KTM.
The KTM 450 EXC-F SIXDAYS uses a new 6-speed transmission made by PANKL RACING SYSTEMS, that now features a stronger, forged raw material, ensuring the highest durability and reliability. There was no need to change the gear ratios that are perfectly matched to the power characteristics of the engine. All four-stroke engines are fitted with a gear sensor, giving the option of different engine characteristics for each gear.
ENGINE MANAGEMENT SYSTEM
The state-of-the-art Keihin Engine Management System, with electronic fuel injection, features a new 42 mm throttle body. There are separate systems for cold starting and idle adjustment, while an improved seal of the MAP sensor (MAP = Manifold-Absolute-Pressure) makes the system even more reliable. A reworked throttle cable mount allows for easy access and smoother routing of the cables. Additionally, for 2020, the ECU features new maps which have been adapted to the new exhaust, airbox and engine configuration, regulating the unique traction control and are activated by an optional map-select switch. It also provides different maps for each gear, according to the information received from the gear sensor, ensuring maximum power as you shift through the gears.
CYLINDER AND PISTON
Inside the short 95 mm bore cylinder, is a new, extremely lightweight, box-in-box type piston made by König. In conjunction with a 10% lighter piston pin, it is a major contributor to the engine's high performance, low vibrations and engine-speed. The compression ratio has increased from 11.7:1 to 12.75:1 for even better engine performance. Additionally, the top of the piston has been optimized for more efficient combustion.
The multifunctional side-mounted counter balance shaft masterfully balances all the oscillating forces, while also driving the water pump. It effectively keeps engine vibrations to a minimum, resulting in the smoothest ride even at the highest engine speeds.
The KTM 450 EXC-F is fitted with the extremely durable, KTM-developed DDS clutch (damped diaphragm steel), with a wear-free steel basket and heat resistant clutch plates. It uses a diaphragm spring instead of the usual coil springs, which results in considerably easier clutch action. The diaphragm spring is also compact enough to allow for a damping system to be integrated into the clutch hub, contributing to better traction and durability. Additionally, the Brembo hydraulic system provides easy and precise clutch modulation throughout the entire operating temperature range.
The standard electric starter on the KTM 450 EXC-F SIX DAYS uses a proven starter drive and a strong starter motor made by Mitsuba. As demonstrated time and time again, it provides quick and reliable starting, saving you precious time and energy when you need it most.
Combining compact dimension with an immense power output, the KTM 450 EXC-F SIX DAYS' fuel-injected SOHC engine is the most powerful and refined 450 cc on the market, thanks to newly developed camshafts, exhaust system and updated electronic fuel injection. Its class-leading power delivery is available throughout the entire rev range and with a reduced weight of only 29.2 kg, this engine is the most compact, lightest and most competitive powerplant out there. With Euro IV homologation, it's not only considerately green, but leaves the competition green with envy too.
1-cylinder, 4-stroke engine
Wet, DDS multi-disc clutch, Brembo hydraulics
3.68 l/100 km
Central-tube frame with double-cradle
WP Xplor PDS shock absorber
Suspension travel (front)
Suspension travel (rear)
Brembo twin-piston floating caliper, brake disc
Brembo single-piston floating caliper, brake disc
Front brake disc diameter
Rear brake disc diameter
X-Ring 5/8 x 1/4"
Steering head angle
Tank capacity (approx.)
Weight READY TO RACE (without fuel)
