450 SX-F FACTORY EDITION 2021
KTM 450 SX-F FACTORY EDITION 2021 for Sale at KTM Epping in Epping, VIC | Specifications and Review Information
The KTM 450 SX-F FACTORY EDITION is a championship winning machine. With its development based on feedback coming directly from elite Motocross and Supercross racers, it's the force behind the success of Red Bull KTM Factory Racing riders around the globe. A formula for victory, the 2021 KTM 450 SX-F FACTORY EDITION comes with a list of updates including KTM's proprietary Connectivity Unit as standard, which allows every rider to explore the potential of the innovative myKTM app straight out of the showroom.
- Red Bull graphic kit
- Akrapovic Slip-On silencer
- Connectivity Unit fitted as standard
- Ability to connect to the innovative myKTM app
- Factory triple clamps anodized in orange
- KTM Factory wheels
- Factory holeshot device in the fork guards
- Orange frame
- Composite skid plate
- Factory seat with Selle Dalla Valle logo
- Semi-floating front disc
- Front brake disc guard
- Orange rear sprocket
- Hinson clutch cover
Battery & Wiring Harness
A strong lithium ion 2.0 Ah battery breathes life into the engine, while adding very little to overall vehicle weight. The lightweight battery and wiring harness are centralized in a compartment above the air filter box, allowing removal of the subframe without moving the electronics.

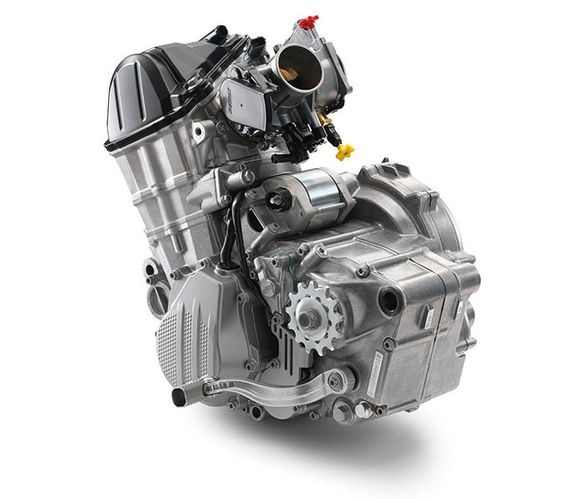

The 450 cc engine is the ultimate powerhouse when it comes to KTM's competitive motocross range. Its compact, lightweight design features a single overhead camshaft cylinder head, fueled by a highly advanced electronic injection system. This enables the impressive power to be distributed extremely efficiently throughout the rev range. Even with its super-beneficial electric starter, this model is still the lightest 450 cc engine on the MX market.
The KTM 450 SX-F FACTORY EDITION is fitted with a lightweight, compact SOHC (single overhead camshaft) cylinder head. The design focusses on mass centralization, contributing to overall handling excellence. The overhead camshaft has a friction-optimized surface and valve timing that delivers impressive responsiveness. The four ultra-lightweight titanium valves (intake 40 mm, exhaust 33 mm) are activated via extremely rigid rocker arms. The rockers on intake side are DLC coated, allowing for impressive engine speeds up to 11,500 rpm. The innovative head configuration guarantees the most efficient delivery of the unrivalled power, keeping a strong edge over the competition.
Crankcases And Engine Covers
The compact engine cases are manufactured using a high pressure die-cast production process that helps with weight reduction, while retaining strength and durability. The design allows for optimal shaft arrangements close to the center of gravity, resulting in better mass centralization and easier ride-ability. The engine covers feature a smart surface structure that reduces wear caused by the rider's boots, keeping them looking as fresh as the day you bought it.
The crankshaft on the KTM 450 SX-F FACTORY EDITION is located in an ideal position close to the center of gravity, contributing to better mass centralization. It utilizes a short connecting rod, which allows for a compact motor design and a snappier power delivery. The whole unit is extremely well-balanced, with the perfect amount of inertia for optimal traction and ride-ability. A plain big end bearing with two force-fitted bearing shells, runs directly on the crank pin, with the necessary oil feed for this bearing supplied by the engine's pressure lubrication. This design also enhances durability, allowing for long crankshaft service intervals - resulting in less effort and cost and more time spent on two wheels.
The transmission on the KTM 450 SX-F FACTORY EDITION is focused on lightweight performance without compromise to durability. The gear ratios have been perfectly matched to the power delivery of the large displacement engine. The engine is fitted with a gear sensor, which provides the option of different engine characteristics for each gear depending on engine load. An advanced "no-dirt" gear lever design prevents dirt from building up and together with the reliable gearbox, guarantees that the next gear is always an easy click away.
Engine Management System
The state-of-the-art KEIHIN Engine Management System, with electronic fuel injection, features a 44 mm throttle body. The injector position guarantees optimal atomization of the fuel and air on the way to the combustion chamber, resulting in instant response and maximum performance when opening the throttle. There are also separate systems for cold starting and idle adjustment. The ECU features maps which have been developed to precisely match the exhaust and cylinder head, with options for regulating traction and launch control. It also provides different maps for each gear, according to the information received from the gear sensor, ensuring maximum power as you shift through the gears.
Cylinder And Piston
Inside the short 95mm bore cylinder thumps a special forged box-in-box piston with a hard anodized compression ring groove and an optimized profile. Its crown geometry is adapted perfectly to the high-compression combustion chamber, where its rigid structure and low weight really shine. Thanks to the low oscillating masses, the engine is as snappy as it is strong.
The multifunctional side mounted counter balance shaft masterfully balances all the oscillating forces, while also driving the water pump. It effectively keeps engine vibrations to a minimum, resulting in the smoothest ride, even at the highest engine speeds.
The KTM 450 SX-F FACTORY EDITION features a DDS (Dampened Diaphragm Steel) Clutch that is actuated hydraulically by a Brembo master and slave cylinder. The single diaphragm steel pressure plate offers better feel and function than a traditional multiple coil spring set-up. The damping system provides better traction and reliability while the CNC-machined basket allows for thin steel liners for a compact design. A special replica Hinson billet clutch cover is fitted to the KTM 450 SX-F FACTORY EDITION.
The standard electric starter on the KTM 450 SX-F FACTORY EDITION uses a proven starter drive and a strong starter motor made by Mitsuba. As demonstrated time and time again, it provides quick and reliable starting, saving you precious time and energy when you need it most.
Handlebar Map Select Switch
Within easy reach of the left grip on all four-stroke models, the multifunctional handlebar map switch features innovative control functions: traction control, launch control and alternative power curves (standard, advanced). The traction control is a unique feature that guarantees more efficient traction and better control when accelerating the bike, especially in challenging track conditions. It can be activated on the handlebar map switch while riding. With a simple push of the two buttons at idle speed, the rider can also activate launch control, ensuring the most effective launch out of the gate. The map switch also gives the rider the chance to select an alternative power map besides the standard configuration, providing performance options during the race. The KTM 450 SX-F FACTORY EDITION features the Connectivity Unit as standard, enabling wireless connectivity with the innovative myKTM app right out of the crate.
Maintaining the optimal engine temperature is crucial to ensuring consistent horsepower throughout the ride. The KTM 450 SX-F FACTORY EDITION features radiators which are positioned for a lower the center of gravity. Their design matches the shrouds perfectly and offers a great slim feel to the ergonomics. By using CFD technology (Computational Fluid Dynamics) together with a clever coolant circuit routing, the innovative system ensures the optimum engine temperature for the highest performance, no matter what the conditions. The radiators also feature special protectors that don't only serve as protection from flying rocks and debris but also as a brace that disperses energy around the radiators in the event of an impact.
The header pipe features a flow-designed resonance chamber that is seamlessly integrated into the system for low noise and optimal power delivery. The lightweight slip-on Akrapovic muffler delivers excellent performance, while ensuring noise levels comply with competition requirements.
The frame on the KTM 450 SX-F FACTORY EDITION is made of professionally crafted hydroformed Chromium Molybdenum steel tubes which are robot welded for the highest levels of consistent quality and strength. The frame stiffness is designed for optimal handling, comfort and high-speed stability. The orange powder coated frame is fitted with color matching frame protectors and a carbon fiber reinforced skid plate.
The cast aluminum design offers low weight and a perfect flex behavior. The single-component casting process eliminates any inconsistencies and inherent weak points created by welding.
The KTM 450 SX-F FACTORY EDITION is fitted with high-end Factory wheels. They feature black D.I.D DirtStar rims and fully CNC-machined orange anodized hubs. Together with black spokes and orange anodized aluminum nipples, they guarantee minimal weight at maximum stability so that the rider will feel an increase in handling. Dunlop GEOMAX MX-33 tires put the power to the ground using the proven block-within-a-block design.
The WP XACT 48 with innovative AER technology is a split function fork featuring a capsulated air spring and pressurized oil chamber for consistent and progressive damping, while offering supreme adjustability. Air spring adjustment is simple with the factory supplied WP digital air pump. Featuring a proven setting, the fork is also fitted with a mechanical holeshot device on its right leg. This ensures the proper weight distribution and ride height for getting to the first turn ahead of the competition.
The WP shock absorber has been developed with the entire frame and swingarm architecture in mind, including the linkage system and the WP XACT 48 front forks. It features machined and anodized components and is a valuable, high-end product compared to rough cast reservoirs.
The CNC-machined Factory triple clamps match the stiffness of the frame perfectly while offering adjustable offset of 20 mm or 22 mm. In addition, its sophisticated fork clamping reduces internal friction for better sliding behavior of the inner fork legs. A rubber damping system reduces vibrations and increases rider comfort.
A 260 mm floating front brake rotor is matched to a Brembo master cylinder and caliper for class-leading stopping power and feel. A front brake protector is fitted as standard equipment on the KTM 450 SX-F FACTORY EDITON.
A lightweight polyethylene tank with a capacity of 1.85 gallons. The fuel tank cap has an inside thread, which makes for quick, easy and reliable closure.
The airbox design offers maximum protection of the air filter while ensuring maximum airflow. The large twin-air filter is mounted in a stiff cage, which helps to hold the system securely in place. This design is so simple, you can pop a fresh one in without tools, in seconds.
Wet, DDS multi-disc clutch, Brembo hydraulics
1-cylinder, 4-stroke engine
WEIGHT (WITHOUT FUEL)
TANK CAPACITY (APPROX.)
FRONT BRAKE DISC DIAMETER
REAR BRAKE DISC DIAMETER
5/8 x 1/4"
Central double-cradle-type 25CrMo4 steel
WP XACT-USD, Ø 48 mm
WP XACT Monoshock with linkage
STEERING HEAD ANGLE
SUSPENSION TRAVEL (FRONT)
SUSPENSION TRAVEL (REAR)
